Features

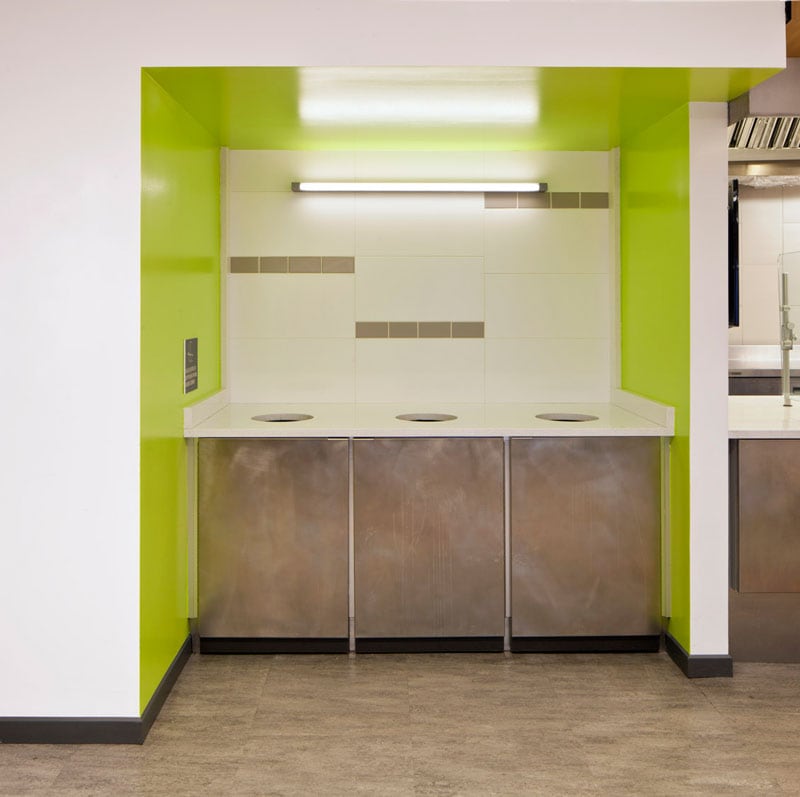

The Elytron luminaire evolved out of the need to provide a minimal, clean T5 and T8 strip fixture with a shielded lamp. The result is this group of six models of sheet formed housings, integrated socket covers, and variety of acrylic lenses and perforated steel shields. Model variants are available for surface, cable, and pendant mounting.
Finishes
Lens Options
Specifications
Fully assembled housing is formed and welded, 20 ga. steel, chemically treated to resist corrosion and enhance paint adhesion
Model variations offered for surface, cable suspended and pendant mount applications
Options include frosted and linear prismatic acrylic lens or perforated steel cover
Available for T5 14W, 21W, 28W, 35W and high output 24W, 39W, 54W, 80W linear fluorescent lamps in single, some tandem lengths and continuous runs
Standard ballast is specification grade 120V-277V program start (consult factory for other voltage options)
Dimming, emergency battery backup and specialized ballast factor options available (refer to supplemental ballast details sheet for availability)
Knock-outs on back of surface mount model accept standard electrical fittings by others (consult factory for other locations)
Rotational locking lamp holders
UL and C-UL listed for dry and damp locations
IBEW manufactured and labeled
Made in the U.S.A.
Product Data
Mounting
- SM: surface mount
- CM48: cable mount 48” cable length
- CM96: cable mount 96” cable length
- PM18: pendant mount 18” stem length
- PM24: pendant mount 24” stem length
- PM30: pendant mount 30” stem length
- CF: consult factory for custom mounting
Run Configuration
- SN: single
- ST: starter
- AD: adder
- TR: terminator
Lens
Additional per foot costs apply
- P: linear prismatic
- F: frosted
- Perf: perforated steel cover
Mounting Options
- Use appropriate fastener through Ø3/16” holes in housing
Ordering Code: SM
Mounting options include:
- Ø 1/16”x 48” (CM48) or 96” (CM96) aircraft cables
- 18 gauge x 60” (CM48) or 108” (CM96) SJT power cable (in coordinating finish)
- Bracket bars
- Ø 5” white canopies
- Ceiling couplers
- Side exit cable grippers
Ordering Code: C48 & C96
Mounting options include:
- Ø 1/2” x 18” (PM18), 24” (PM24) or 30” (PM30) white steel stems
- Bracket bars
- Ø 5” white canopies with integrated slip ring
- Hex nuts
Ordering Code: PM18, PM24, PM30
