Chill HL2-Y

2” aperture direct/indirect acoustic panel luminaire, Y-shape configuration

CutsheetExplore Chill

Downloads

HL2-Y

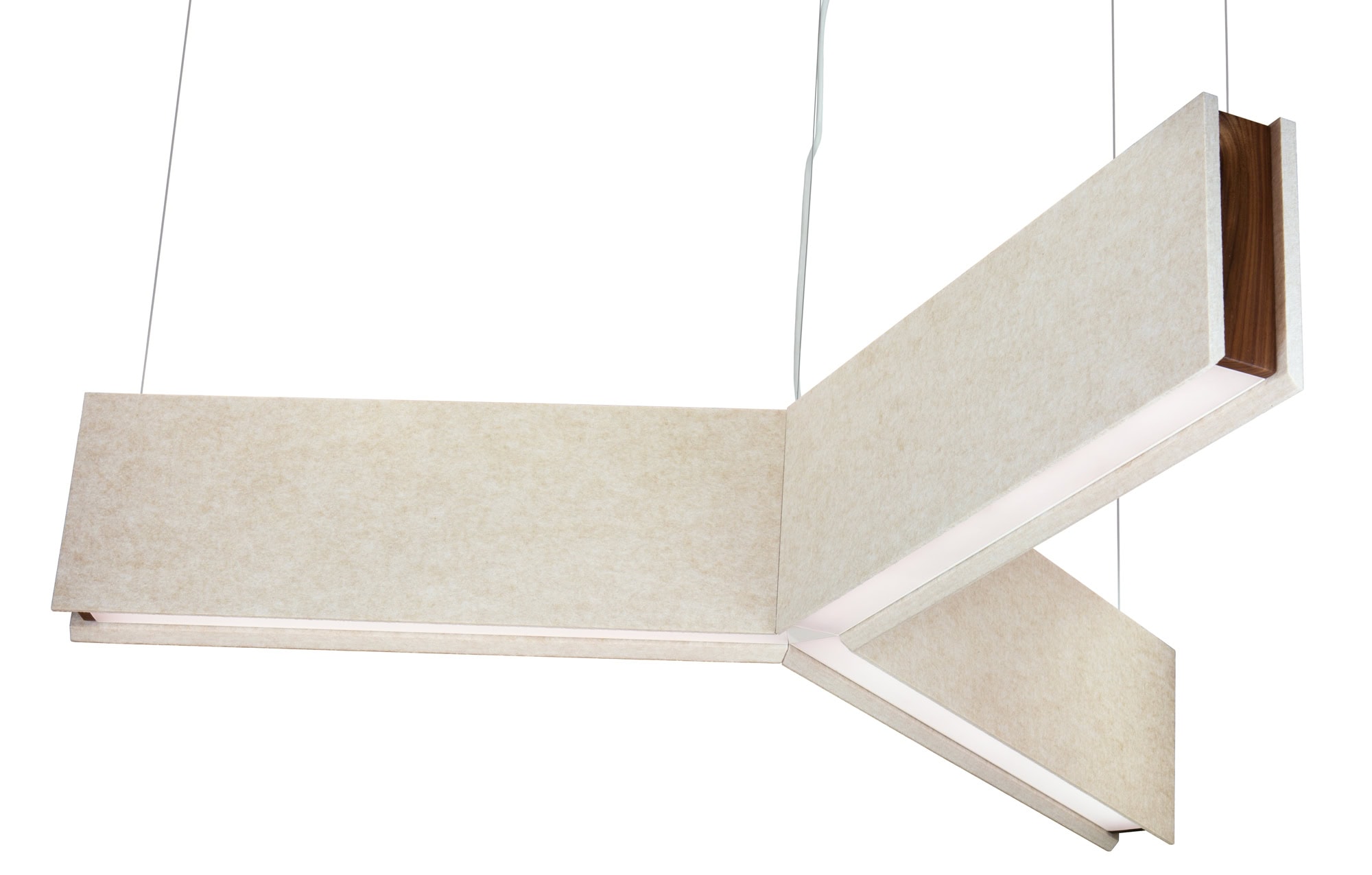

Inspiration

Features

The Chill HL2-Y direct/indirect luminaire is designed to enhance interior spaces with subtle to bold colors, while damping sound reflections.

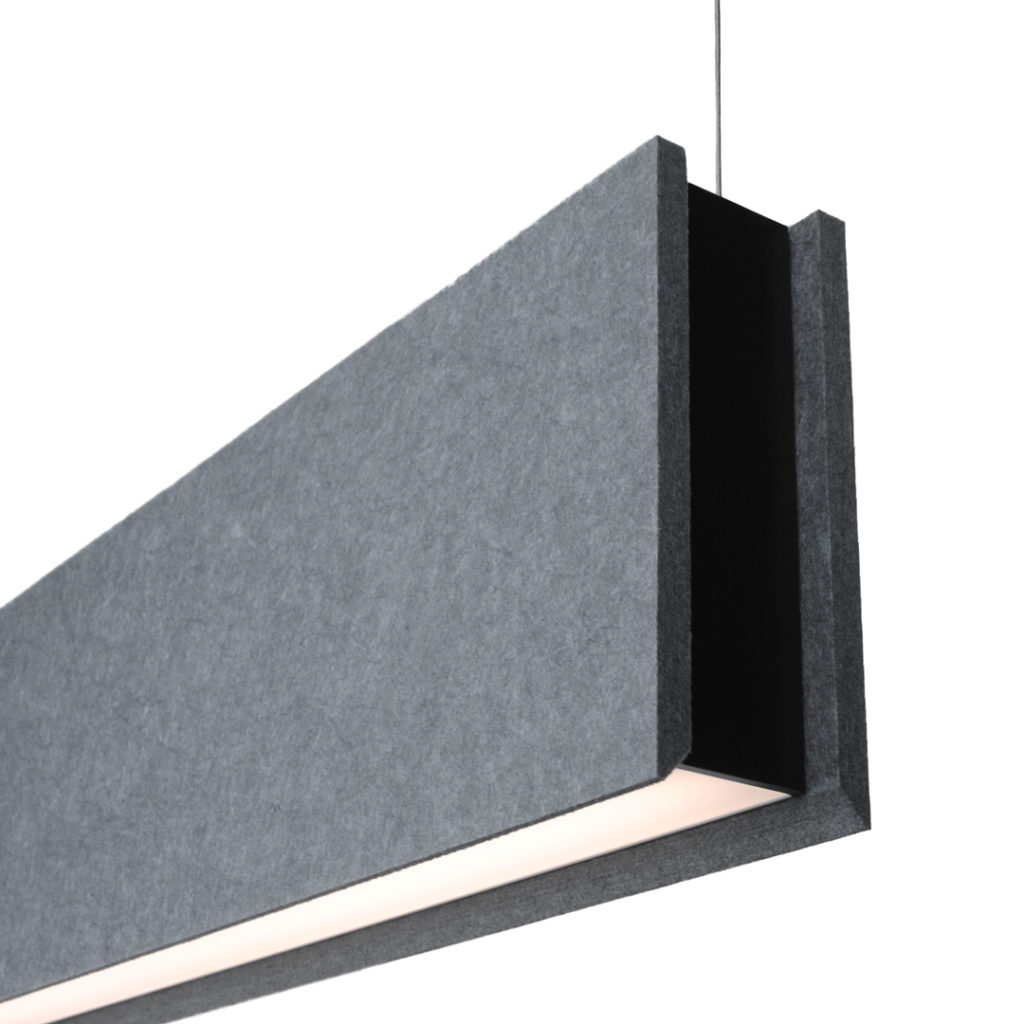

The 2” wide aperture fixture, configured in a Y-shape, is clad with ½” thick felt acoustic panels in 8”, 12” or 16” heights, 4’, 6’ and 8’ nominal sizes and twenty standard colors. Fixture end treatments include matching acoustic material, machined aluminum end caps with powder coat or printed imagery options or solid wood end caps in a variety of finishes.

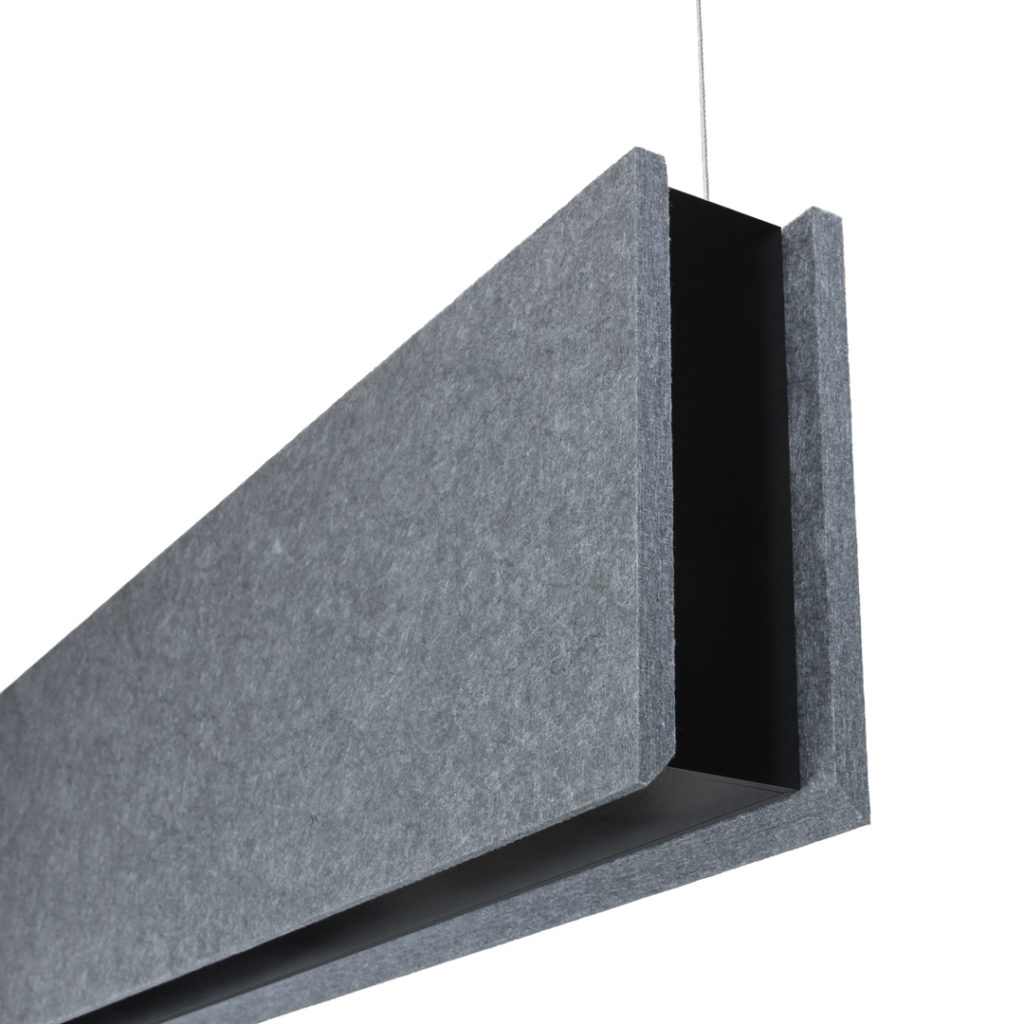

Add further sound absorption in an architectural space with complimenting HB2-Y non-illuminated acoustic baffles.

Finishes

Performance

  • Optic Configuration: Direct
  • Output: R: regular
  • Luminaire Watts: 33.1
  • Luminaire Lumens: 2896
  • Efficacy (LPW): 87

Note: All data reflects fixtures with 3500K LEDs and direct optic configuration.

Specifications

Fixture constructed of extruded aluminum, heavy gauge sheet formed steel and aluminum, extruded acrylic lenses and PET acoustic felt panels.

Fixture offered in sizes of 4’, 6’ and 8’ nominal diameters.

The 1/2” thick, 100% PET (>75% recycled), fire rated (ASTM E84 Class B) 0.98 NRC acoustic felt panels feature a bottom beveled edge and are available in twenty standard colors.

Fixture end treatment options available in matching acoustic material or machined aluminum end caps with standard powder coat, optional RAL finishes, high resolution digital imagery or solid wood end caps.

Standard integral 120-277V driver offered with 0-10V dimming or non-dim (other dimming driver options available).

Integral 120-277V emergency battery backup available for non-dim or 0-10V fixtures, wired to operate the direct source (consult factory for details and for compatibility with other drivers).

Standard regular outputs are 2896 lumens for the direct source and is 4100 lumens for the indirect source.

LEDs available in 2700K, 3000K, 3500K and 4000K, within a 3 step MacAdam ellipse, all with 90+ CRI typical.

Life: 50,000 hours L70.

Limited five year warranty.

UL and C-UL listed for dry locations.

Made in U.S.A.

Product Data

Nominal Fixture Length

  • 4: 48"
  • 6: 72"
  • 8: 96"

Correlated Color Temperature

  • 27: 2700K-90+ CRI
  • 30: 3000K-90+ CRI
  • 35: 3500K-90+ CRI
  • 40: 4000K-90+ CRI

Driver

  • ND: non-dimming
  • D: 0-10V, 1%
  • DTR: triac, 1%
  • DLV: electronic low voltage, 1%
  • HES: Lutron EcoSystem, soft-on/fade-to-black, 1%
  • EL: eldoLED ECOdrive, 0-10V, 1%
  • ES: eldoLED SOLOdrive 0-10V, 0.1%
  • ELD: eldoLED ECOdrive DALI, 1%
  • ESD: eldoLED SOLOdrive DALI, 0.1%

Mounting

  • C4: cable mount 4’ cable length
  • C8: cable mount 8’ cable length

Light Output

  • Indirect | L1: low output, Lambertian dist.
  • Indirect | R1: reg. output, Lambertian dist. – 4100 lm
  • Indirect | H1: high output, Lambertian dist.
  • Indirect | VH1: very high output, Lambertian dist.
  • Indirect | NA: no indirect light source
  • Indirect | CF: consult factory for custom configuration
  • Direct | LA: low output, flush lens
  • Direct | RA: reg. output, flush lens – 2896 lm
  • Direct | HA: high output, flush lens
  • Direct | NA: no direct light source
  • Direct | CF: consult factory for custom output

Options

  • ED: emergency driver (SINGLE CIRCUIT, non-dim or 0-10V only)
  • WS1A: Wattstopper FS- 205, 100%-0% *
  • WS1B: Wattstopper FS- 205, 100%-50% *
  • EN1: Enlighted FS-D22 *
  • ES4: Philips EasySense SNS211 MC *
  • CA1: Casambi CBU-A2D *
  • NL1: nLight RES7 *
  • NL2: nLight RIO *
  • LA1: Lutron Athena A-WN-D01-RF-WH *
  • LA2: Lutron Athena A-WN-D01-OCC-WH *

* See Integrated Controls section for driver compatibility information.

End Treatment

  • 1: extended panels
  • 2: acoustic
  • CF: consult factory for custom end treatment

End Finish

  • Code from color key: ___
  • CF: consult factory for custom finish

Height

  • 8: 8"
  • 12: 12"
  • 16: 16"

Sections

Mounting Options

Cable Mount

NOTE: WHEN DUAL CIRCUIT OPTION IS USED, TWO POWER CABLES ARE REQUIRED

  • Ø 1/16”x 48” (C4) or 96” (C8) aircraft cables
  • 60” (C4) or 108” (C8) power cable in coordinating finish
  • Ceiling couplers, cable grippers and Ø 5” white canopies

Ordering Code: C4 and C8
