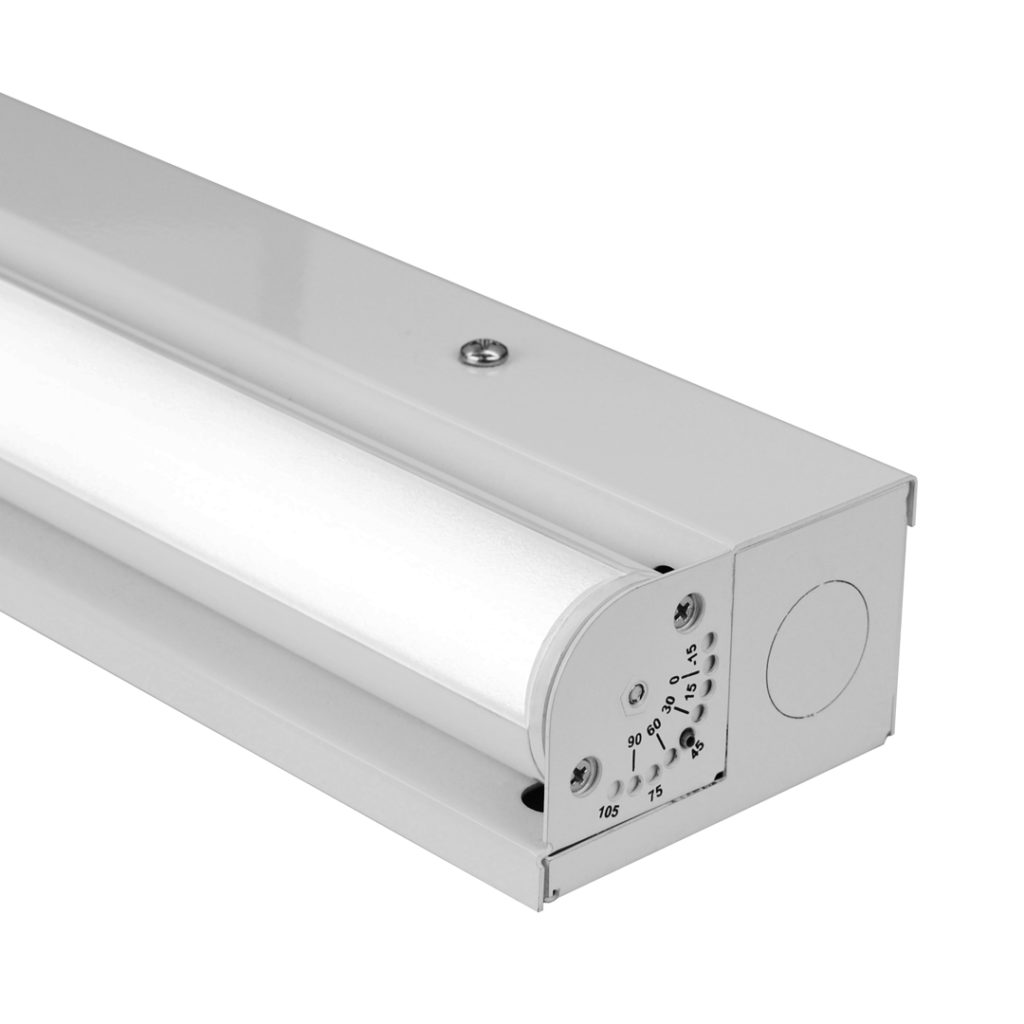

The HCB20 is a linear LED luminaire tailored for health-centric lighting installations. This small profile, cove mount model features rugged construction, a unique, field adjustable locking focus and two optic options.
The HBC20 fixture is embedded with BIOS SkyBlue® circadian solutions to produce the healthy “blue sky” light signal needed to stimulate human circadian biology. This specific light wavelength communicates directly with human biology through a non-visual photoreceptor to regulate circadian rhythms, providing healthier sleep patterns and ultimately, better health.
Performance
- Nominal Length: 4'
- Output: R: regular | H: high
- Asymmetric | Lumens/ft.: R: 690 | H: 915
- Asymmetric | Watts/ft.: R: 8.2 | H: 11.3
- Asymmetric | Luminaire Lumens: R: 2601 | H: 3468
- Asymmetric | Efficacy (LPW): R: 84 | H: 81
- Frosted | Lumens/ft.: R: 665 | H: 885
- Frosted | Watts/ft.: R: 8.0 | H: 11.0
- Frosted | Luminaire Lumens: R: 2510 | H: 3347
- Frosted | Efficacy (LPW): R: 83 | H: 80
Note: All data reflects fixture with BIOS Static Spectrum 3500K LEDs.
Lens Options
Asymmetric light distribution
Ordering Code: A
Lambertian light distribution
Ordering Code: F
Specifications
Fixture mounting/wiring channel is formed and welded 20 ga. steel chemically treated to resist corrosion and enhance paint adhesion.
LED housing is extruded aluminum with sheet aluminum end caps.
Standard fixture finish is semi-gloss white powder coat, applied post production.
Asymmetric and general diffuse extruded acrylic lens options available.
Available in nominal lengths of 2’, 3’, 4’ and 5’.
LED housing rotates and locks in place without tools at -15°, 0°, 15°, 30°, 45°, 60°, 75°, 90° and 105°.
Knock outs on ends and underside accept standard electrical fittings by others.
Standard integral 120V-277V driver offered with 0-10V dimming or non-dim (other dimming driver options available).
Integral 120-277V emergency battery backup available for 4’ nominal non-dim or 0-10V (consult factory for all other lengths/drivers).
Standard outputs range from 665 to 915 lumens per foot, dependent on optic option.
BIOS LEDs have 80+ CRI, R9 90+ and are available in static 3000K, 3500K, 4000K and two dynamic options in 2700-3000K, 2700-3500K and 2700-4000K.
Life: 50,000 hours L70.
Limited five year warranty.
UL and C-UL listed for dry and damp locations.
IBEW manufactured and assembled.
Made in U.S.A.
Product Data
Nominal Fixture Length
- 2: 23-3/32"
- 3: 34-9/32"
- 4: 45-15/32"
- 5: 56-23/32”
Correlated Color Temperature
- BIOS Static | BS30: 3000K
- BIOS Static | BS35: 3500K
- BIOS Static | BS40: 4000K
- BIOS Dynamic | BD30: 2700K-3000K
- BIOS Dynamic | BD35: 2700K-3500K
- BIOS Dynamic | BD40: 2700K-4000K
- BIOS Dynamic TW | BDTW30: 2700K-3000K
- BIOS Dynamic TW | BDTW35: 2700K-3500K
- BIOS Dynamic TW | BDTW40: 2700K-4000K
Driver
- ND: non-dimming
- D: 0-10V, 1%
- DTR: triac, 1%, (120V ONLY) *
- DLV: electronic low voltage, 1%, (120V ONLY) *
- HES: Lutron EcoSystem, soft-on/fade-to-black, 1% *
- EL: eldoLED ECOdrive 0-10V, 1%
- ES: eldoLED SOLOdrive 0-10V, 0.1%
- ELD: eldoLED ECOdrive DALI, 1% *
- ESD: eldoLED SOLOdrive DALI, 0.1% *
* Consult factory for dimming protocols other than 0-10V.
Light Output
(lumens per foot w/ optic option A)
- R: regular – 690
- H: high – 915
- CF: consult factory for custom output
Lens
- A: asymmetric
- F: frosted (Lambertian)
Options
- ED: emergency driver (4’ nom. non-dim or 0-10V only)

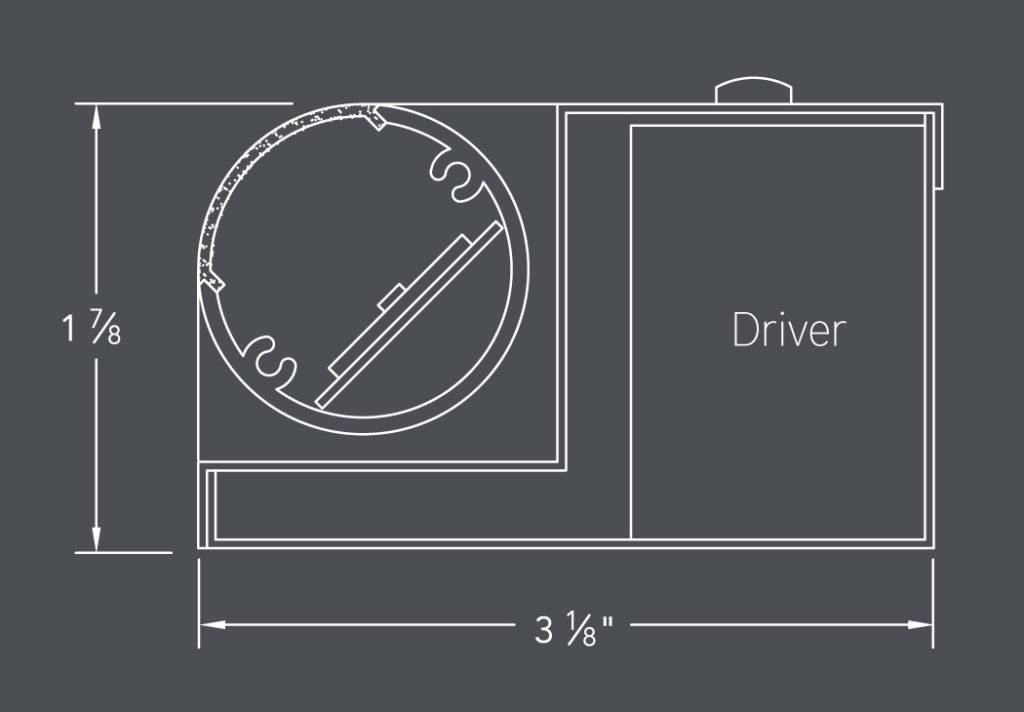

Section
Shown with asymmetric optic
