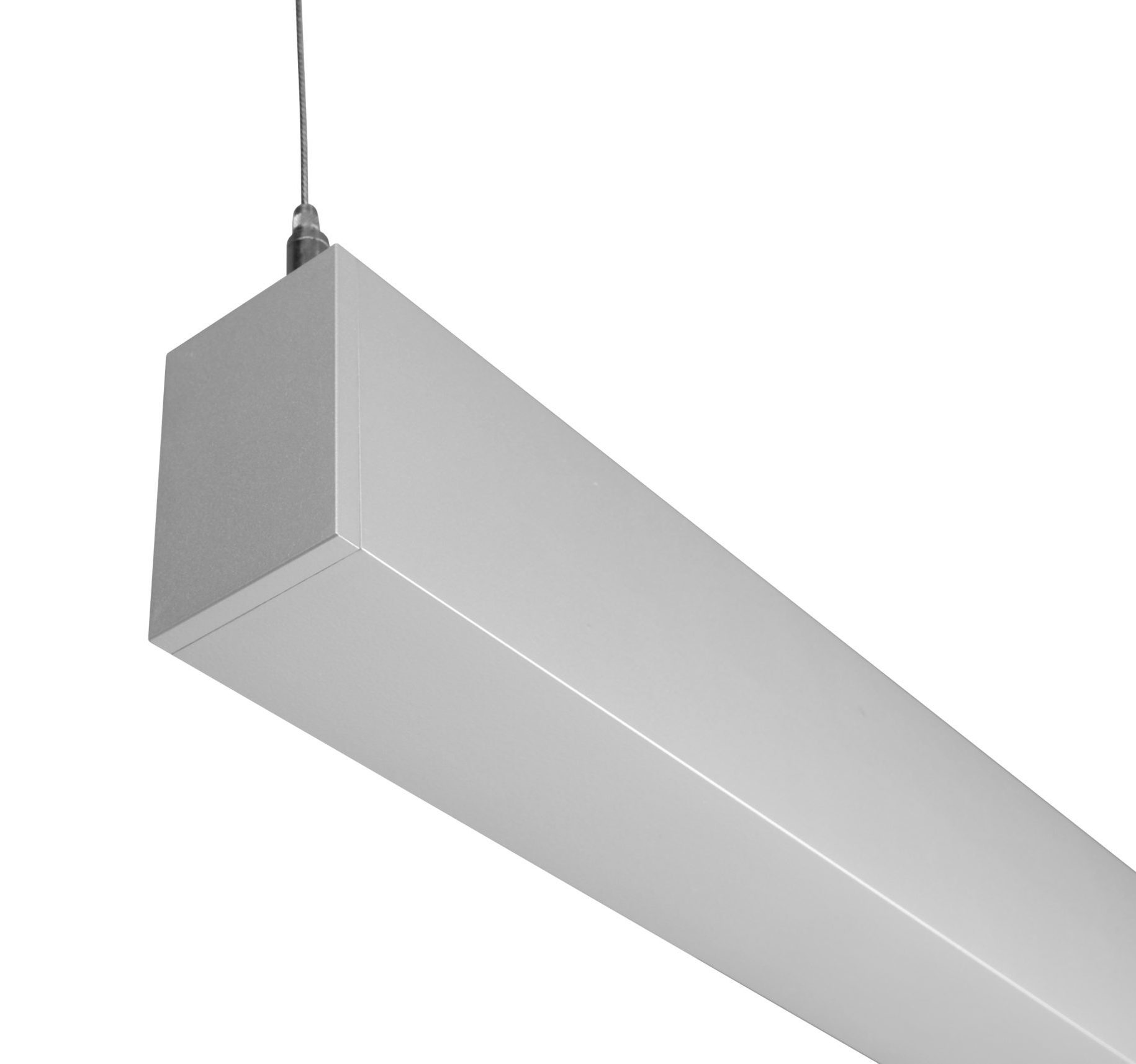

The BSS235 is an indirect linear LED luminaire for general lighting applications. The 2” wide by 3” tall extrusion is capped with machined aluminum end caps and available with Lambertian or batwing light distributions. A variety of dimming drivers, light outputs and finishes add further versatility of this clean design luminaire. The BSS235 is Controls Capable, being offered with a variety of integrated control options.
Finishes
Lens Options

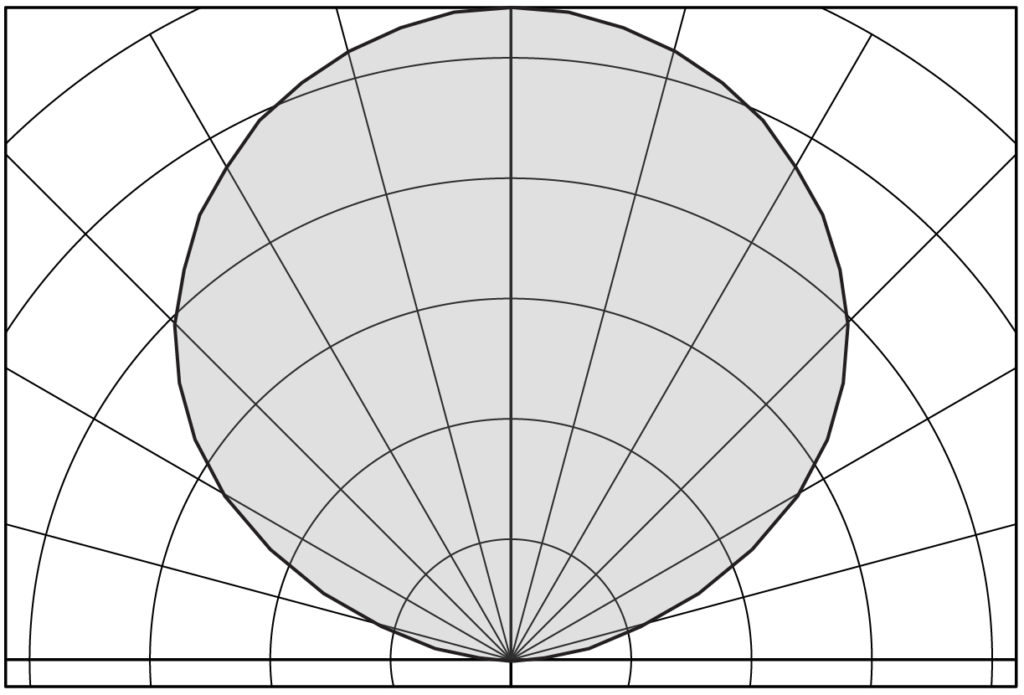

Lightly frosted extruded acrylic lens for Lambertian distribution
Ordering Code: 1

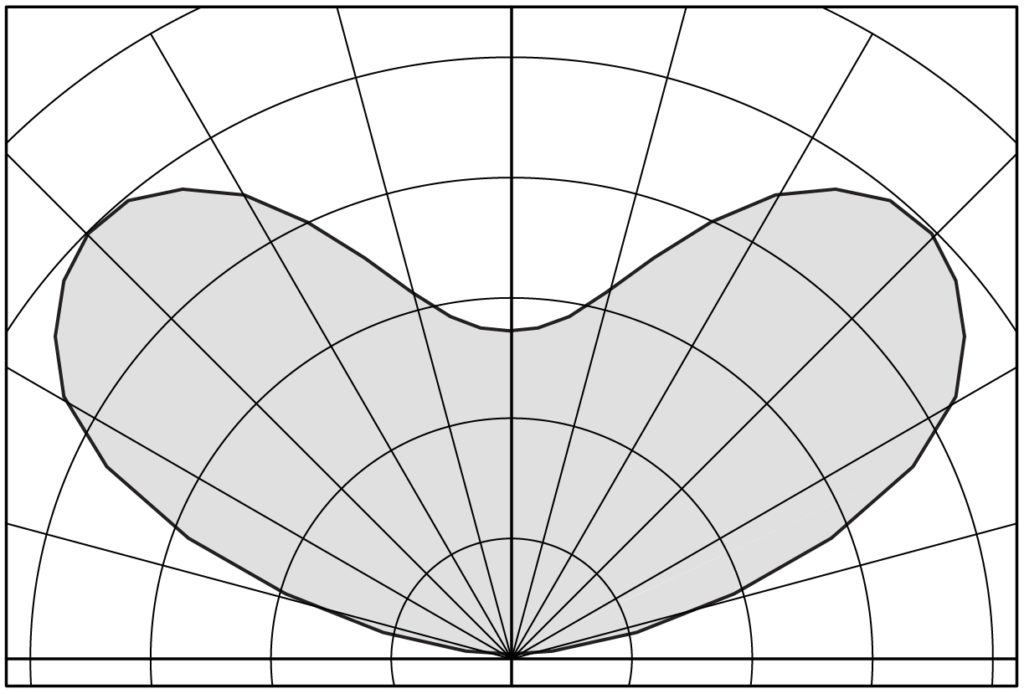

Clear extruded acrylic with wide distribution optic features
Ordering Code: 2
Specifications
Fixture constructed of extruded aluminum, extruded acrylic lens and machined aluminum end caps.
Lambertian and batwing light distributions available.
Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental satin silver (alternative to anodize), bronze and primer powder coat, applied post production (consult factory for custom finishes).
Satin anodize finish also available (may require additional lead time).
Available in nominal lengths of 2’–8’ single fixtures and continuous runs.
Basic continuous run fixtures provided with 18 ga. wiring harness for 6 Amp maximum load (consult factory for runs requiring sensor integration, etc.).
Standard integral 120-277V driver offered with 0-10V dimming or non-dim (other dimming driver options available).
Integral 120-277V emergency battery backup available for 4’ or 8’ nominal non-dim or 0-10V (consult factory for all other lengths/drivers).
Standard light outputs range from 465 – 970 lumens per foot depending on the optic option.
LEDs available in 2700K, 3000K, 3500K and 4000K, within a 3 step MacAdam ellipse, all with 90+ CRI typical.
Life: 50,000 hours L70.
Bartco Lighting Controls Capable fixture available with integrated controls from a variety of suppliers.
Limited five year warranty.
UL and C-UL listed for dry and damp locations.
IBEW manufactured and assembled.
Made in U.S.A.
Product Data
Nominal Fixture Length
- 2: 24-1/2"
- 3: 35-1/2"
- 4: 46-1/2"
- 5: 57-1/2"
- 6: 68-1/2"
- 7: 79-1/2"
- 8: 90-1/2"
Actual dimension dependent on run configuration.
Correlated Color Temperature
- 27: 2700K-90+ CRI
- 30: 3000K-90+ CRI
- 35: 3500K-90+ CRI
- 40: 4000K-90+ CRI
Driver
- ND: non-dimming
- D: 0-10V, 1%
- DTR: triac, 1%
- DLV: electronic low voltage, 1%
- HES: Lutron EcoSystem, soft-on/fade-to-black, 1%
- EL: eldoLED ECOdrive 0-10V, 1%
- ES: eldoLED SOLOdrive 0-10V, 0.1%
- ELD: eldoLED ECOdrive DALI, 1%
- ESD: eldoLED SOLOdrive DALI, 0.1%
Mounting
- C4: cable mount 4’ cable length
- C8: cable mount 8’ cable length
- CF: consult factory for custom mounting
Light Output
(lumens per foot w/ optic option 2)
- L: low – 570
- R: regular – 740
- H: high – 970
- CF: consult factory for custom output
Run Configuration
- SN: single
- ST: starter
- AD: adder
- TR: terminator
Options
- ED: emergency driver (4’ or 8’ non-dim or 0-10V only)
- WS1A: Wattstopper FS-205, 100%-0% *
- WS1B: Wattstopper FS-205, 100%-50% *
- EN1: Enlighted FS-D22 *
- ES4: Philips EasySense SNS211 MC *
- CA1: Casambi CBU-A2D *
- NL1: nLight RES7 *
- NL2: nLight RIO *
- LA1: Lutron Athena AWN- D01-RF-WH *
- LA2: Lutron Athena AWN- D01-OCC-WH *
* See Integrated Controls section for driver compatibility information.
Optic
- 1: Lambertian distribution
- 2: batwing distribution
Section
Mounting Options
Mounting option includes:
- Ø 1/16”x 48” (C4) or 96” (C8) aircraft cables
- 60” (C4) or 108” (C8) power cable (in coordinating finish)
- Bracket bars
- Ø 5” white canopies
- Ceiling couplers
- Side exit cable grippers
Ordering Code: C4 and C8
