Features
The BLT210 luminaire provides high performance with high value. The heavy gauge, sheet formed 2-1/8” wide steel housing is offered with rectangular or round profile frosted acrylic lenses and 90+ CRI LEDs. Multiple driver, light output and mounting options enable this basic linear fixture to provide great versatility in applications. The BLT210 is Controls Capable, being offered with a variety of integrated control options.
Available for QuickShip.
Finishes
Performance
- Nominal Length: 4'
- Output: L: low | R: regular | H: high
- Lumens/ft.: L: 635 | R: 865 | H: 1315
- Watts/ft.: L: 5.5 | R: 7.7 | H: 12.5
- Luminaire Lumens: L: 2347 | R: 3195 | H: 4852
- Efficacy (LPW): L: 116 | R: 113 | H: 105
Note: All data reflects fixtures with 3500K LEDs and rectangular profile
Lens Options

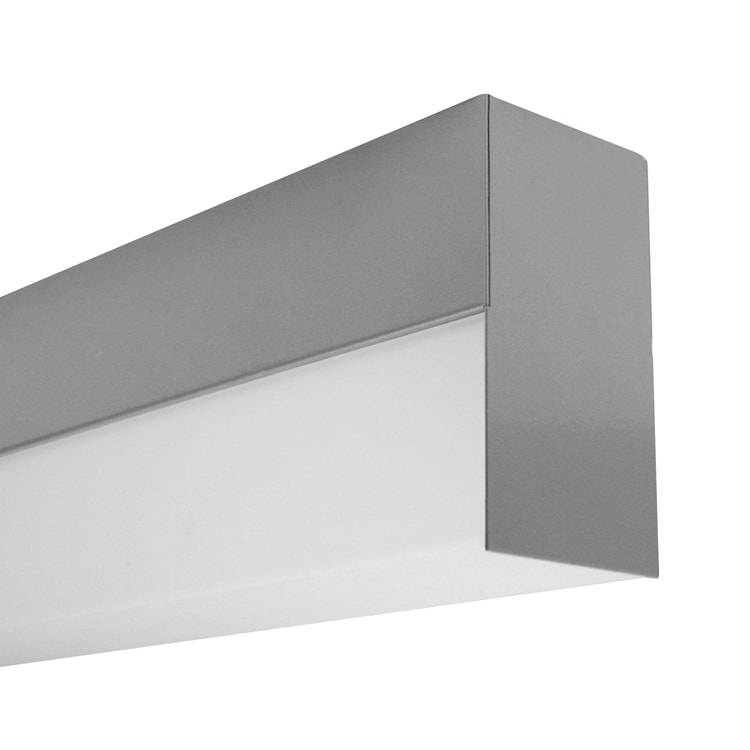

Frosted acrylic extrusion with rectangular profile
Ordering Code: A

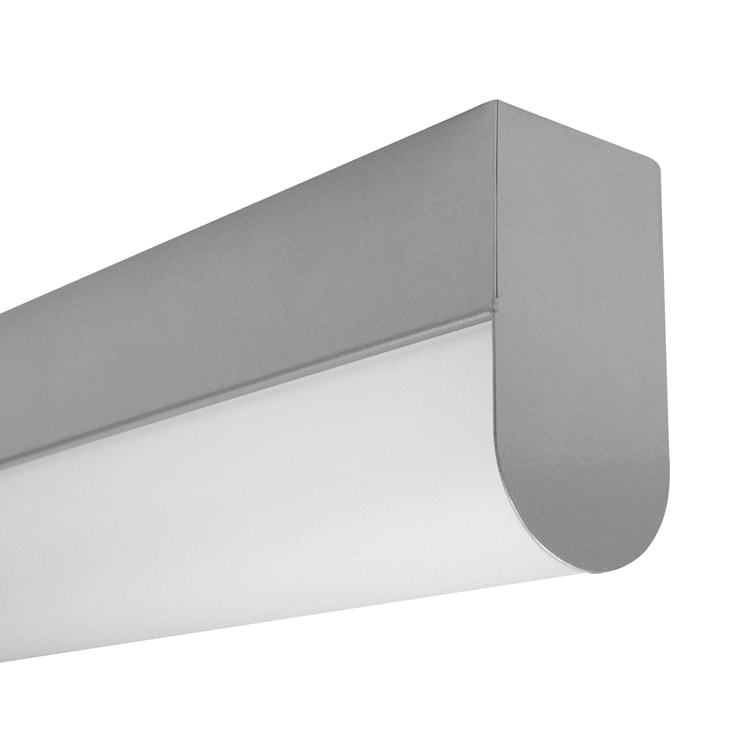

Frosted acrylic extrusion with rounded profile
Ordering Code: B
Specifications
Housing is formed and welded, 20 ga. steel, chemically treated to resist corrosion and enhance paint adhesion.
Model variations offered in rectangular or rounded profiles for surface and cable suspended applications.
Standard finishes include architectural white (semi-matte), white (semi-gloss), black (semi-matte), matte black, environmental satin silver (alternative to anodize), bronze and primer powder coat, applied post production (consult factory for custom finishes).
Available as single fixtures in nominal lengths of 2’-8’.
Surface mount models include knock outs on the rear and surface or suspended models are available with optional end knock outs.
Standard integral 120-277V driver offered with 0-10V dimming or non-dim (other dimming driver options available).
Integral 120-277V emergency battery backup available for 4’ nominal non-dim or 0-10V (consult factory for all other lengths/drivers).
Standard light outputs are 635, 865 or 1315 lumens per foot.
LEDs available in 2700K, 3000K, 3500K, and 4000K, within a 3 step MacAdam ellipse, all with 90+ CRI typical.
Life: 50,000 hours L70.
Bartco Lighting Controls Capable fixture available with integrated controls from a variety of suppliers (FOR RECTANGULAR PROFILE ONLY).
Limited five year warranty.
UL and C-UL listed for dry and damp locations.
IBEW manufactured and assembled.
Made in U.S.A.
Product Data
Nominal Fixture Length
- 2: 22-5/16”
- 3: 33-5/16”
- 4: 44-5/16”
- 5: 55-5/16”
- 6: 66-5/16”
- 7: 77-5/16”
- 8: 88-5/16”
Correlated Color Temperature
- 27: 2700K-90+ CRI
- 30: 3000K-90+ CRI
- 35: 3500K-90+ CRI
- 40: 4000K-90+ CRI
Driver
- ND: non-dimming
- D: 0-10V, 1%
- DTR: triac, 1%, (120V ONLY)
- DLV: electronic low voltage, 1%, (120V ONLY)
- HES: Lutron EcoSystem, soft-on/ fade-to-black, 1%
- EL: eldoLED ECOdrive, 0-10V, 1%
- ES: eldoLED SOLOdrive 0-10V, 0.1%
- ELD: eldoLED ECOdrive DALI, 1%
- ESD: eldoLED SOLOdrive DALI, 0.1%
Mounting
- SM: surface mount
- WD: wall mount direct light
- WI: wall mount indirect light
- C4: cable mount 4’ cable length
- C8: cable mount 8’ cable length
- CF: consult factory for custom mounting
Light Output
(lumens per foot)
- L: low – 635
- R: regular – 865
- H: high – 1315
- CF: consult factory for custom output
Lens
- A: rectangular lens profile
- B: round lens profile
Options
- EK: add end knock-outs
- ED: emergency driver (4’ nom. non-dim or 0-10V only)
- WS1A: Wattstopper FS-205, 100%-0% *
- WS1B: Wattstopper FS- 205, 100%-50% *
- EN1: Enlighted FS-D22 *
- ES4: Philips EasySense SNS211 MC *
- CA1: Casambi CBU-A2D *
- NL1: nLight RES7 *
- NL2: nLight RIO *
- LA1: Lutron Athena A-WN-D01-RF-WH *
- LA2: Lutron Athena A-WN-D01-OCCWH *
* See Integrated Controls section for driver compatibility information.
Sections
Mounting Options
- Use appropriate fastener through Ø3/16” holes in housing
Ordering Code: SM
Mounting options include:
- Ø 1/16”x 48” (C4) or 96” (C8) aircraft cables
- 60” (C4) or 108” (C8) power cable in coordinating finish
- Bracket bars
- Ø 5” white canopies
- Ceiling couplers
- Side exit cable grippers
Ordering Code: C4 and C8
